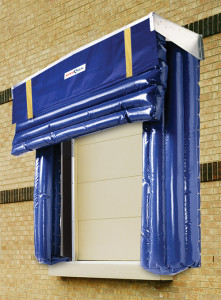

V-1024 INFLATABLE LOADING DOCK SHELTER

Designed for door openings up to 10′ wide X 10’high, the series V1024 is the optimum solution where a fixed frame shelter is not feasible and a variety of different height and width trailers are serviced. The Series V1024 is uniquely designed to provide complete access to the trailer openings. Ideal for problem dock areas such as sloped and difficult driveway approaches. Excellent for installation on metal sided building walls. Super Seal’s exclusive 16 oz. “Rip Stop” fabric developed specifically for inflatable products will give years of trouble free service. The series V1024 creates an optimum seal that blocks out foul weather, insects, dust and dirt, while saving money on energy costs. Inflatable truck seal help productivity by increasing safety, protecting personnel, products and equipment. Series V1024 standard dimensions for door openings 10′ wide X 10′ high are 11’4” wide X 11’8” high (O.D.) with a 24” projection, and a 48” header air bag when inflated. The V1024 seals trailers 10’6” to 13’6” high from grade with a dock height of 48”.

Series V1024 Retractable inflatable truck shelter consist of two (2) vertical air bags to be fastened onto a 2” X 8” select kiln-dried pressurized wood frame, (supplied unassembled by manufacturer) through brass plated grommets using galvanized wood screws. The bottom of the vertical seals to have an inflatable bottom corner seal which will include brass plated grommets for venting of air and to assist in moisture drainage. Inflatable header air bag to be full width over vertical seals mounted on a select kiln-dried pressurized wood frame.

Inflatable header air bag in deflated mode is stored behind a reinforced vinyl curtain with a 4” yellow stripe to aid in the spotting of trailers. Unit to be supplied with 1/2 HP, 115 V, 60/50 Hz, 1400-RPM motor/blower with a manual ON/OFF switch with neon pilot light. The motor/blower shall be mounted under a protective canopy constructed of cedar framework covered with UV treated translucent rigid plastic. The top canopy shall be peaked to allow for drainage and shall be fastened to the wall by means of a galvanized steel side and strapping supports.

The V1024 is inflated by turning switch on and deflates automatically when unit is turned off by means of internal pulley and retraction arm system for the verticals and a torsion roller assembly for the header. Unit to be manufactured of exclusive 16 oz. vinyl “RipStop” fabric double stitched, high strength twisted 4 ply 100% polyester bonded thread UV treated used for sewing throughout. Unit shall be furnished with all necessary mounting hardware, galvanized to resist corrosion.

Can be part of a totally automated dock loading system.
